Dual-Purpose Multi-Functional X-ray film reader and Intraoral camera CAM.S4 Wired Type

intraoral dental camera Dual-Purpose Multi-Functional X-ray film reader and Intraoral camera CAM.S4 Wired Type

$655.00

($625.00 5)

intraoral dental camera designed for use by dentists. It combines an X-ray reader with an SD card and a 5 inch LCD screen together with an intra oral camera and TF card.

Real time: 5 Visitor right now
Voltage
  • 110V
  • 220V
Quantity
1

intraoral dental camera Dual-Purpose Multi-Functional X-ray film reader and Intraoral camera CAM.S4 Wired Type


intraoral dental camera Introduction

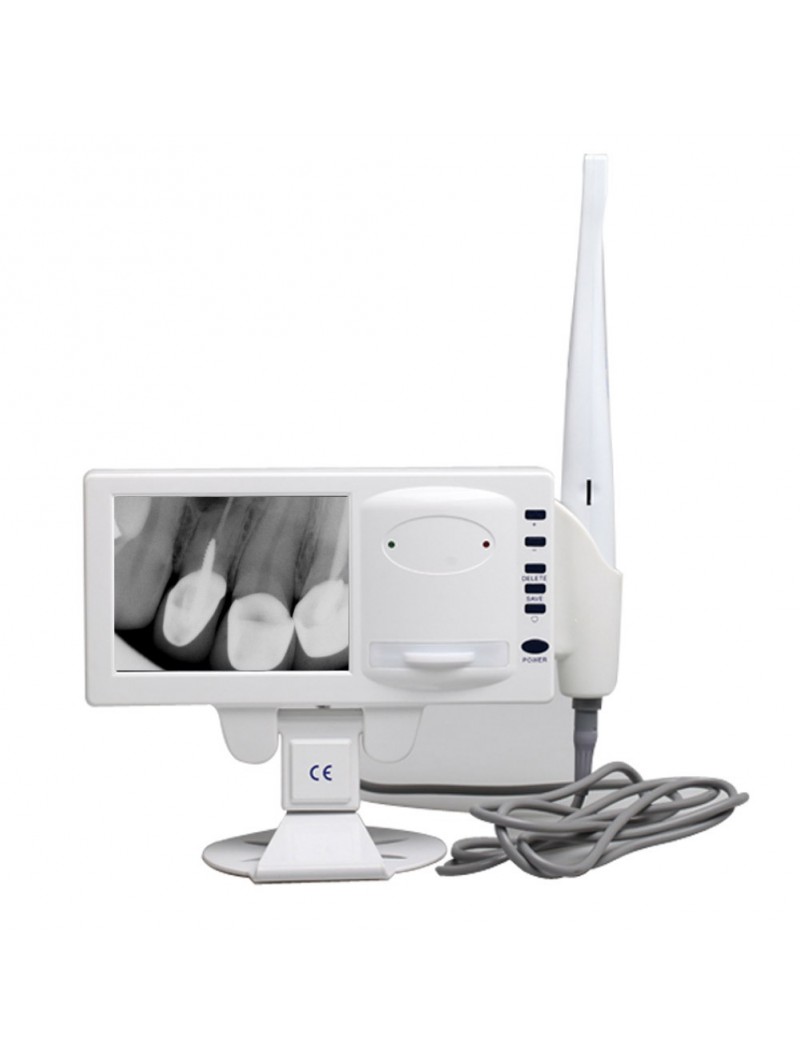

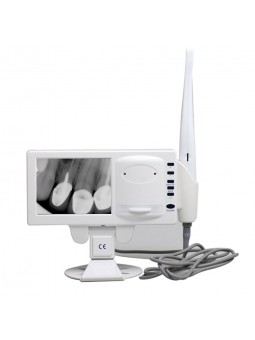

Thank you for buying our company’s product, the Super Cam (CAM.S4). This product is specially designed for use by dentists. It combines an X-ray reader with an SD card and a 5 inch LCD screen together with an intra oral camera and TF card. This makes it easy to operate anywhere and anytime. Moreover, it can replace the traditional X-ray viewer of a dental unit.


intraoral dental camera Characteristics


1, A combination of 5inch LCD monitor, X-ray reader and intra oral camera.
2, Video, USB and VGA output, high resolution, high quality.
3, Built-in over-voltage and reverse voltage protection circuit.
4, Lightweight and small in size, which makes it easy to operate.
5, Built-in SD card which can save up to 500 individual pictures.
6, Multi functional - enables easy switching between displaying X-ray images and intra oral camera photos on the 5 inch LCD monitor.
7, 5 inch LCD monitor can adjust brightness, contrast and color and so on
8 Can upgrade to wireless system
9. Has PAL and NTSC option

intraoral dental camera Specification:


5 inch LCD monitor


1. LCD size: 5.0 inch (Diagonal)
2. Driver element: a-Si TFT active matrix
3. Resolution: 640* 3(RGB) *480
4. Display mode: Normally white. Transmissive
5. Dot pitch: 0.0529(W)*0.1587(H)mm
6. Active area: 101.568(W)* 76.176(H) mm
7. Module size: 117.56(W) * 88.43(H) *5.7(D) mm
8. Surface treatment: Anti-Glare
9. Color arrangement: RGB-stripe
10. Interface: Digital
11. Backlight Power consumption: 1. 2000W (Typ.)
12. Panel Power consumption: 0.193(Typ.)
13. Weight: 108g

2.2 X-ray reader


1. Voltage: DC 5V(supply by main machine)
2. Power: 300 MA
3. Changes the ordinary x-ray film to digital one, can save the images into SD card
4. Zoom the films to 50 times on 5inch LCD; it makes easier communicate between dentists and patients
5. Don’t need setup driver, can use it anytime and anywhere.

intraoral dental camera Packing List:


1. Camera holder 1 piece
2. Fixed support 1 piece
3. Removable support(Base stand) 1 piece
4. CF-986 Intra oral camera 1 piece
5. Video cable 1 piece
6. USB cable 1 piece
7. VGA cable 1 piece
8. 5 Pin camera cable 1 piece
9. DC- 5V transformer 1 piece
10. AC 24V to DC 5V adaptor 1 piece
11. Disk 1 piece
12. SD card and SD card adapter 1 piece
13. SD card reader 1 piece
14. Salver 1 piece
15. Sheath 50 pieces
