Easyinsmile TANZO Classic Steam Sterilizer Autoclave Class B designed in Germany

autoclave for sale Easyinsmile TANZO Classic Steam Sterilizer Autoclave Class B designed in Germany

$1,960.00

($1,800.00 2)

Easyinsmile Woson TANZO Classic Steam Sterilizer  is new invention in 2015 and show on 2015 IDS conference becomes one of most popular autoclave in European market.The autoclave is very stable in quality and function.

Real time: 5 Visitor right now
Voltage
  • 110V
  • 220V
Capacity
Adapter
Quantity
0

autoclave for sale Easyinsmile TANZO Classic Steam Sterilizer Autoclave Class B designed in Germany

Easyinsmile Woson TANZO Classic Steam Sterilizer  is new invention in 2015 and show on 2015 IDS conference becomes one of most popular autoclave in European market.The autoclave is very stable in quality and function.

Installation Environment
The sterilizer should be set in a place where at least has 10cm distance with each side (20cm from the top) .

NOTE:

The sterilizer should be set in a place with good ventilation.

The operation temperature: 5-40℃.

The humidity of environment: ≤85%.

The atmosphere pressure: 860Hpa~1060Hpa.

An earth connection is essential.

Specification

Basic specification

Rated Voltage: a.c.220V-230V, 50Hz

Rated power: 18L/1500VA, 23L/1700VA

Fuse: T10A

Operation temperature: 5~40℃

The board affording weight: 4000 N/m2

Noise :< 50db

Maximum capacity of per tray: 1000g

Frequency of water draining: once a day, drain the water once you find “water over” during operation.

The maximum duration of using loading test: 90mins.

The maximum thermal radiation energy under the condition of 20℃~26℃:<2000J.



Sterilizer chamber:

Material: stainless steel (for medical)

Max. work Pressure: 2.5 bar

Min. work Pressure: -0.9 bar

Max. temperature: 145 ℃

Chamber volume: 12L(Φ192×340mm)  18L(Φ245×360mm)  23L(Φ245×470mm)

Loading size: 12L(155×155×250mm)  18L (198×204×285mm)  23L(198×204×385mm)

Max. loading weight: 12L (3.02kg/cm2)    18L (3.07kg/cm2)   23L (3.21kg/cm2)

Working pressure/temperature: 1.10~1.30bar/121℃~122℃;2.10~2.30bar/134℃~135℃

Water volume for one cycle: 0.16L(min)0.18L(max)



Sterilizer Steam Safety Valve:

Safety release pressure: 2.45 bar

Max. Working temperature: 160 ℃

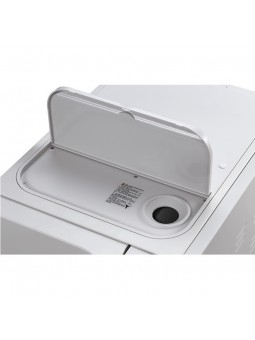

Clean Water Tank

Water tank volume: 12L(3.5L)   18L (3.5L)    23L (4L)
